GE 125 Amp Main Lug Load Center 8 Circuits

GE PowerMark Gold 125 Amp 4-Space 8-Circuit Indoor Load Center - TL412CP


GELC125-8

Available in increments of 1
Quantity
Total Percent Off Per Unit
1
$26.66 0% $26.6600
2
$50.65 5% $25.3270
5
$119.97 10% $23.9940
$226.61 15% $22.6610
$426.56 20% $21.3280
$519.87 25% $19.9950
$1,866.20 30% $18.6620







Coleman Air







PRODUCT DESCRIPTION

The GE PowerMark Gold 125 Amp 4/8 Circuit Indoor Load Center is designed to provide a quick installation and a dependable performance. Its galvanized steel construction ensures durability and rust resistance. This unit accepts GFCI and AFCI circuit breakers. Wiring is made easy with full-length neutral bars.


  • Galvanized steel box is maintenance free and resists rust
  • Copper buss bar supports high conductivity
  • Factory-installed main lug, full-length neutral bars and self-adjusting dead-front cover
  • 100% rated split neutral on each side
  • Single phase, 3-wire, 120/240 VAC, 125 Amp s and 22K AIC rating
  • All holes are rated for 14-4 wire
  • Compatible with standard GFCI and AFCI circuit breakers
  • UL listed and ANSI certified
  • MFG Brand Name : GE
  • MFG Model # : TL412CP
  • MFG Part # : TL412CP

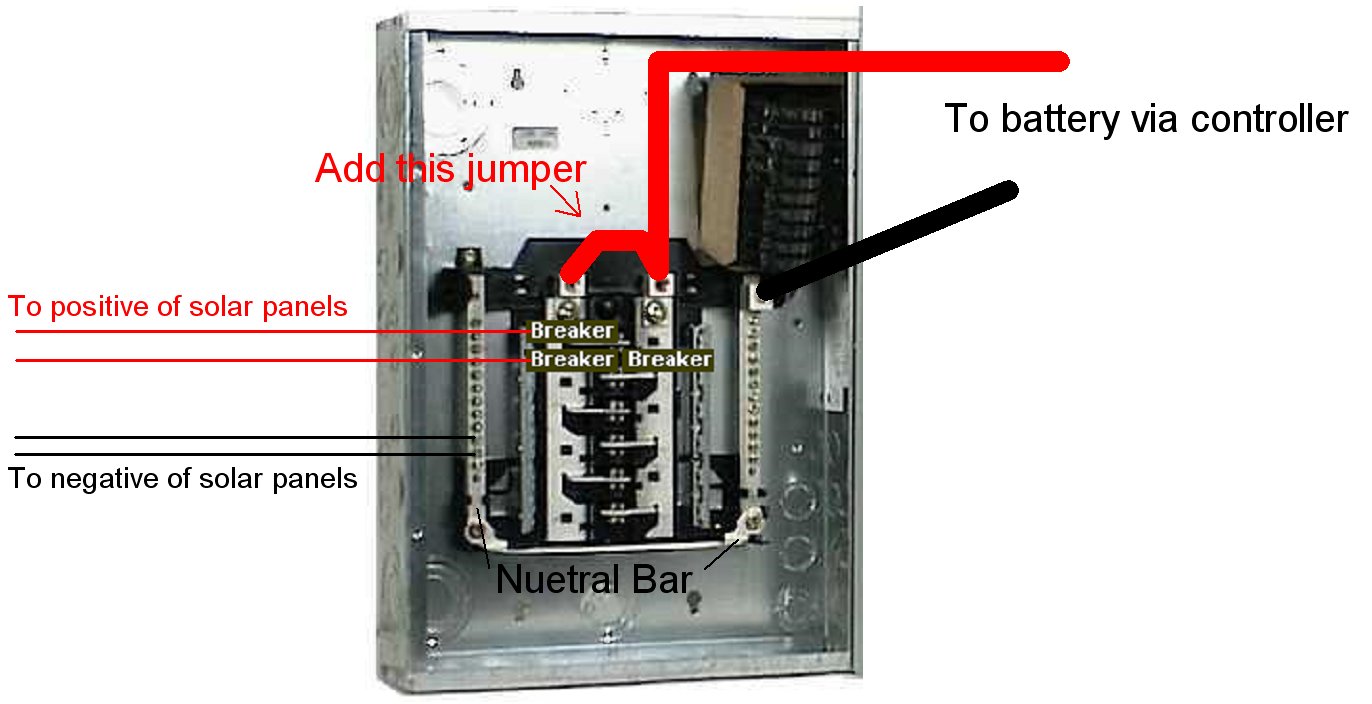

The image above demonstrates how to use a standard A/C load center as a solar combiner box. This load center may or may not be the same as the one being sold on this page, it is shown for reference purposes only. Please see the top of this page for a picture of the item being sold thru this page. Click here for more information on wiring solar panels using this method.

SPECIFICATIONS

ANSI Certified  Yes  Assembled Depth (in.)  3.8 in
Assembled Height (in.)  10.5 in  Assembled Width (in.)  9.0 in
CSA Listed  No  Electrical Product Type  Load Center
Indoor/Outdoor  Indoor  Item Package Type  Cardboard Container
Load Center Type  Main lug  Load center depth (in.)
Load center height (in.)  Load center width (in.)  7.25
Manufacturer Warranty  Lifetime Warranty  Maximum Amperage (amps)  125 A
Maximum Voltage  240 V  Mounting type  Plug In
Number of Spaces  Number of phases
Product Weight (lb.)  5.445  Returnable  90-Day
UL Listed  1-UL Listed
