Dual Volt/Amp Panel Meter

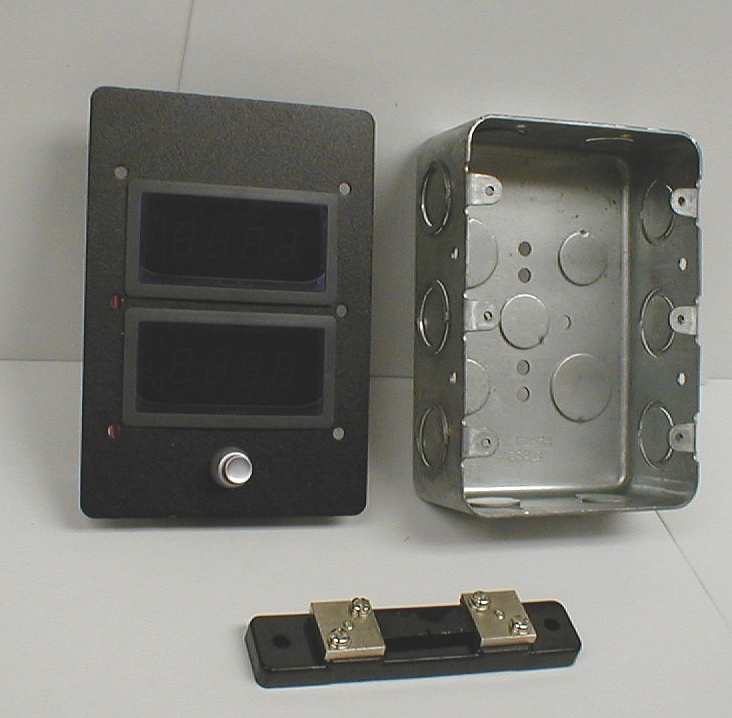

With three gang switch box and shunt
8.5V to 100V DC Digital Blue LED Display
50 Amps DC Digital Red LED Display
With On/Off switch
Finally an affordable, ready to go volt and amp meter for your alternate energy system.
This meter does not need a separate power supply
A highly-efficient yet flexible volt/amp meter which can be used to measure the voltage of 12, 24 and 48 volt battery banks directly along with their charge or discharge current. No separate power supply is needed! This meter has been designed specifically for alternate energy systems; yet, it also perfect for measuring vehicle, yacht, electric toy, tool or motorcycles having a 12V, 24V or 48V storage batteries.
Advantage over other panel meters by competitors:
- Compared with LCD panel meters, this LED panel meter has a high contrast display with super clear numbers and wide viewing angle.
- Measures both Volts and Amps (Both charge and discharge.)
- Super convenient operation (DOES NOT need an additional power supply.) Hook up the leads and you are set.
- On/Off Switch -- This meter uses only 40ma to 60ma ( .04 to .06 amps) at 24 volts, or approx. 20ma at 48 volts. If you are like many of us who simply do not like wasted energy, regardless of how small it is, then you will love this meter, as you can simply shut if off when you are not using it.
- Good looking, black matte solid metal face plate, drilled and ready to mount on a standard three gang switch box (box included along with six 6-32 screws).
- Shunt can be remotely located for direct sensing. Remotely locating the shunt is recommended if you have large wires coming or going from your batteries or charge source. This allows the wires to take a more direct path to the batteries and alleviates the need to route them through the meter case.
Below is a picture of the same two meters mounted in our hinged enclosure -- This picture is included to show you the meters while they are powered; however, the camera cannot do justice to the clarity of the display. The LED characters are quite perfect. The camera is simply unable to focus on the LEDs properly.
Above is a picture of the same two meters mounted in our hinged enclosure -- This picture is included to show you the meters while they are powered.
Above picture is the backside of the meter panel. The isolated power supply is mounted onto the back of the top meter. The four wires are used for termination to your equipment. Please see the hookup drawing below and/or download the manual
- Large (0.56”/14.2mm) easy-to-read red and blue LED displays.
- Wide application range. Can be used to measure the voltage of various batteries ranging from 8.5-100V DC.
- Successive approximation-based AD conversion, which is fast and accurate.
- Highly-efficient DC-DC converter, with very low temp rise.
- Completely isolated, super efficient, custom made switch mode power supply.
- Reverse polarity protection..
- Min. Input volts: 8.5VDC
- Max. Input volts: 100VDC
There is now a jumper to allow the volt meter to either measure the supply voltage or the voltage present at the shunt -- Making this meter very flexible. Please download the manual for more info:
There is a big difference in this unit's internal power supply and the ones you will see being advertised for powering panel meters.
- Most "meter" supplies you find use a low cost linear voltage regulator. This is completely useless for 48 volt systems, and on 24 volt systems, you better have a big heat sink and expect to use about 1 amp of power just running a single meter. This supply uses a super efficient high voltage switching regulator, this is not cheep, but it is necessary!
- An amp meter requires total isolation from its power supply verses its sense leads. This is difficult to accomplish when you want to use the voltage available at the shunt to power the meter directly. Many DC to DC isolators are available if you wanted to build this type of supply yourself, but you still have to reduce the incoming voltage to the level of the DC to DC isolator -- and you have to prevent the meters power demand from dropping the voltage across the shunt and fooling the amp meter into thinking there is more amperage then is actually occurring. A voltage drop of only .0075v will cause an amp reading of 10 amps!. We have accomplished this and it is ready to go.
- This supply uses a pre-regulator to allow higher than normal incoming voltages to properly handle 48 volt systems in an overcharged state, or that are receiving high incoming charge voltages. This you will not find (that we are aware of) anywhere for any direct powered meter in this price range.
Hookup four wires and you are ready to go. Push the switch to turn the meter on. Push again to shut if off. That's about it, super simple, yet super functional!
