Coleman Air C155-SMAD Controller


Click on image for full size
Coleman Air C155-SMAD, Digitial, 155A 12/24/48V Solar PWM Charge Controller with LCD Display

SORRY -- OUT OF STOCK

The Digital version of our C155-SMA
High amperage Solid-State PWM Solar Charge Controller.
155 Amp, 12, 24 or 48 volts, with 200 amp shunt.
LCD Display with volts/amps/watts and more.
Built in D/C Breakers. Designed for solar.
10 x 12 X 6 Hoffman Box.
Over-voltage, over-current protected.


Click here to download the quick start guide
Click here to download the full installation and instructional manual.

C155-SMAD

Available in increments of 1
Quantity
Total Percent Off Per Unit
1
$999.99 0% $999.9900
2
$1,899.98 5% $949.9905
5
$4,624.95 7.5% $924.9907
$8,499.92 15% $849.9915
$16,499.84 17.5% $824.9918
$19,999.80 20% $799.9920
$37,499.63 25% $749.9925
$72,499.27 27.5% $724.9927



Coleman Air




Coleman Air C155-SMA-D, The fully Digital

155 AMP 12/24/48V Solar PWM Charge Controller with LCD Meter

155 Amp - Solid State PWM Solar Charge Controller

Two D/C breakers/disconnects.


Works directly with 12, 24 and 48 volt battery based systems







This solid-state (no relays or solenoids) charge controller has been specifically designed for large to medium sized solar, battery based alternate energy systems of up to 155 amps. With thousands of hours of R&D, this controller solves many of the issues currently unaddressed in most if not all other charge controllers. One of the most prevalent problems has been, how to handle more than 80 amps of solar power without using multiple controllers. Most charge controllers on the market use one or two power mosfets, generally limiting their current capabilities to a range of 40-80 amps. The Coleman Air C155-SMAD uses two high-power IGBTs (400 amps each), in a parallel configuration, allowing a significant increase in total current handling capability. Our in house testing has shown that this controller can handle surges of 12,500 watts! We are unaware of any other solid-state charge controller that can come close to this level of power handling.

Some of the key features of this controller are:

  • High amp rating – 155 amps solar (1860 watts at 12 volts, 3720 watts at 24 volts, 7440 watts at 48 volts, with 10,000 watt surge)
  • Microprocessor controlled -- This is very important for both stability and functionality.
  • Solid-State. No relays or solenoids to wear out.
  • PWM (pulse width modulation) charging. (Charges using pulses of varying lengths)
  • Three stage charging for better battery life.
  • Both manual and automatic (30 day) equalize function.
  • User changeable settings -- Several controllers on the market set the voltage levels, and that's that!
  • Over-current, over-voltage and overheat protection.
  • Automatic System battery detection, allows the controller to self calibrate to 12, 24 and 48 volt systems.
  • On/Off switch for the meters to allow extremely low idle current.
  • Full menu system to set charging and user preferences.
  • High contrast 16 x 2 LCD display. Displays Volts, Amps and Watts and much more.
  • Steel enclosure – 12 x 10 x 6 enclosure with multiple conduit openings and cooling vents.
  • Large terminals - that can actually terminate large wire, with lugs that accept up to 2/0 wire.
  • Passive cooling systems uses aluminum cooling pipes that run the length of the unit for continuous cooling of the entire unit allowing for proper operation at high power levels.
  • Two internal 150-amp breakers with manual reset/disconnect.
  • No blocking diodes are required, the IGBTs prevent reverse leakage.

Note: Continuous power handling may be reduced in hot climates or installations.


Click here to download the C155-SMAD Charge Controller Manual.






The microprocessor is the heart of the controller. The battery level is constantly checked by the microprocessor and compared to the active mode’s (Float, Bulk or Equalize) set point to determine how much (if any) current should flow into the batteries. As the battery’s level of charge increases, so does the voltage of the battery (the battery’s level of charge can be determined by the voltage of the battery.) As the charge level increases the controller may use very short pulses of energy to “top off” or maintain the charge at the optimum level. These pulses of energy will be of varying lengths as required. This charging algorithm is referred to as pulse width modulation (or PWM), and when properly controlled, offers a very suitable method of charging deep cycle batteries to ensure good battery health and longevity.

Settings are of course user changeable! This unit incorporates a menu driven interface that allows super easy set point changes and calibration tweaking.

Two very powerful 400 amp IGBTs are wired in parallel to insure plenty of reserve capacity above the rated 155 amps this controller.

The controller can handle surges in excess of 155 amps; however, sustained high amperage currents will cause the internally mounted breakers to trip and/or the unit to heat up rapidly causing a cool down period. It is recommended that you use the controller to control currents that will not exceed the 155 amps of solar energy under the best of charging conditions.



The enclosure is heavy gauge, solid steel, ready to mount. -- No plastic, no junk, simple and rugged.

This all metal box is perfect for terminating larger wire. It has multiple knockouts on each side of the box. The box measures 10.25"W x 12.5"H x 6.25"D. The electronics are fully isolated from the box. Shipping weight is approximately 20 lbs.

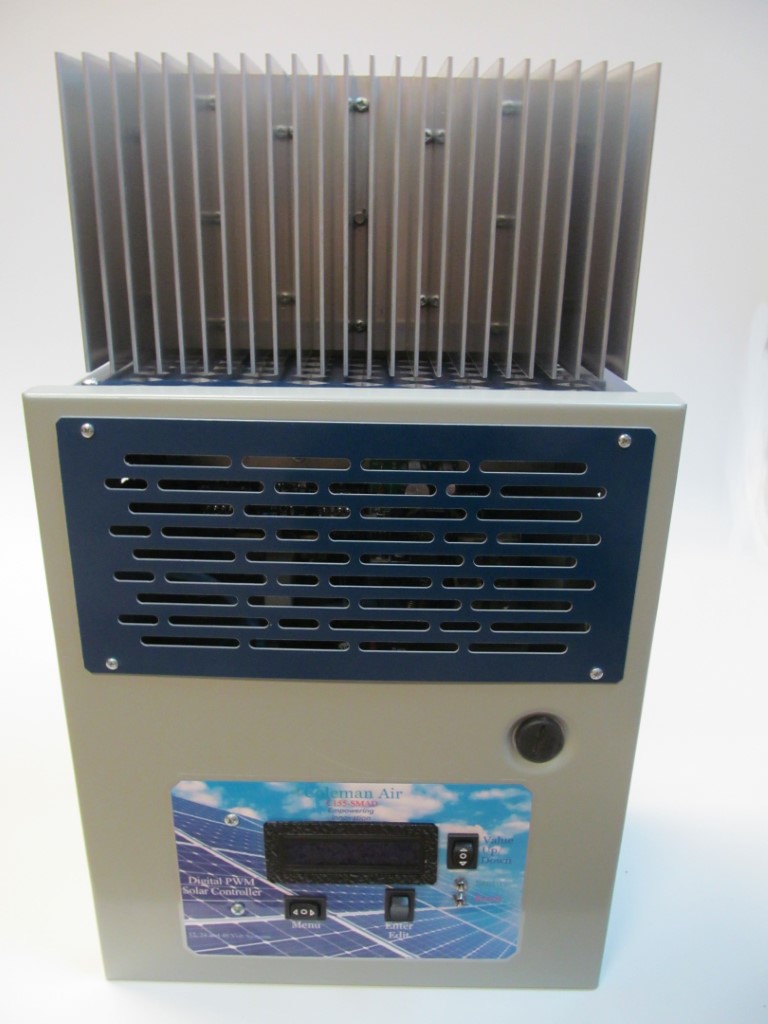

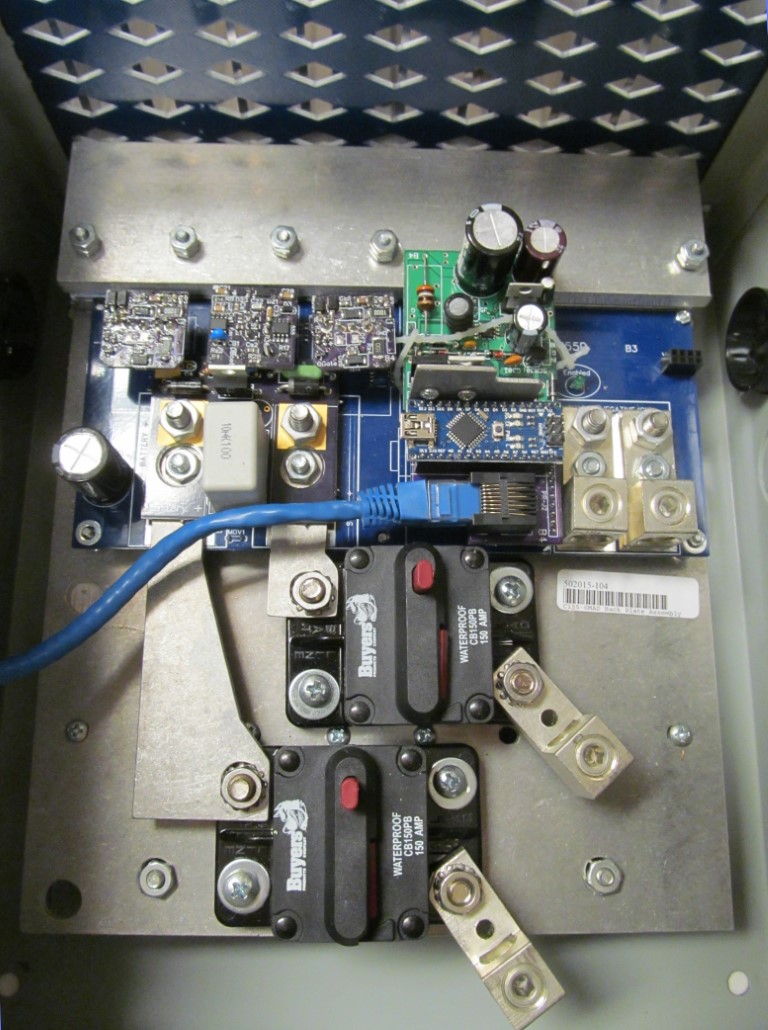

C155-SMA High Amperage Solar Controller




When you compare this controller to the others, you will see why we built it and why we know you'll love it.






A quality built controller, no skimping on parts, insuring the best fit for the most demanding solar installations, ready to go work!

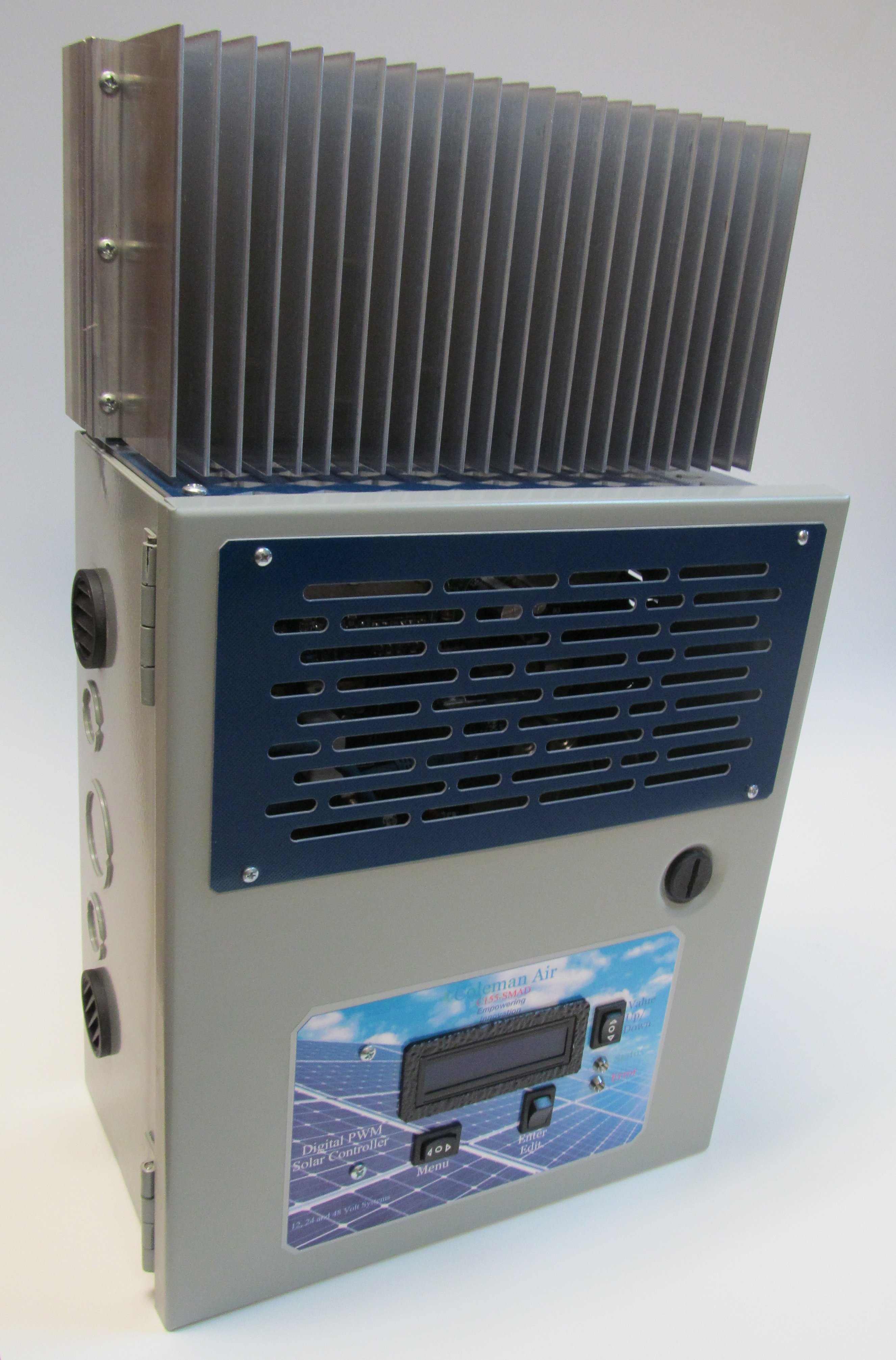

C155-SMA High Amperage Solar Controller






Ready to go. built to last, right here in the USA.

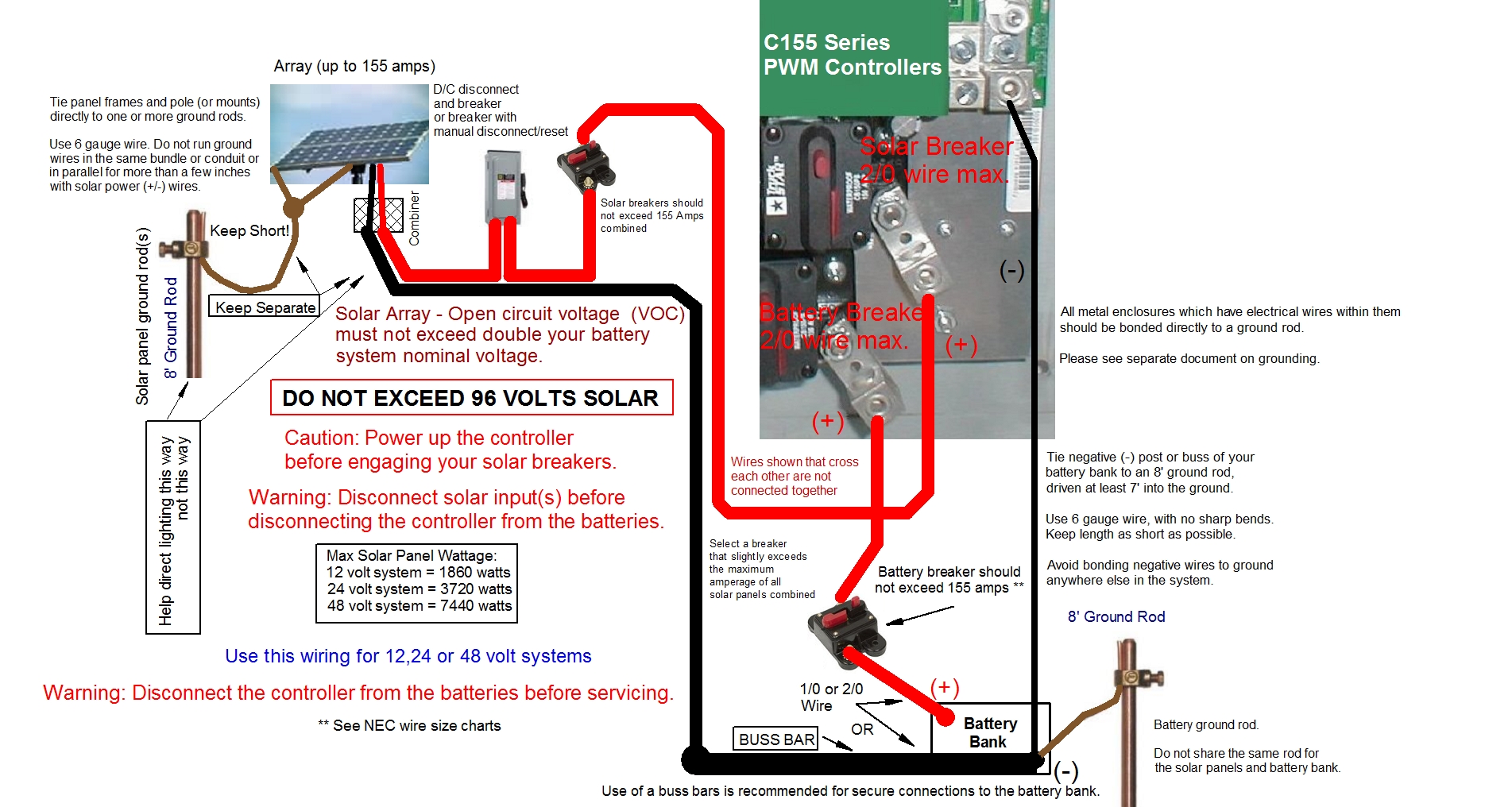

C155-SMA Charge controller wiring diagram


This hookup diagram shows an older C155-SMA (Analog model)






Click here to download the C155-SMA Charge Controller Manual.





It would take nearly four C40 solar charge controllers to equal this one controller, 2-1/2, C60 solar controllers and nearly 2, C80 charge controllers. Compare the price saving and extra cost of wiring all of these charge controllers. In addition, the Coleman Air C155 PWM charge controller has both volt and amp meters, dual disconnects with built in breakers, test, auto equalize, 3 stage charge battery charging. Super convenient, super powerful (high amperage, high voltage charge controller), all in a ready to go package. A PWM controller, built here in the USA (Check out where the big name C40, C60 etc. controllers are built!).



More to come:
Put us on your watch list, we are currently working on a series of new products specifically for the solar/wind market.

Big things are happening from a lot of little companies, and if you notice the truly innovate products are being released from the new kids on the block.





Click here to view our frequently asked questions. (FAQ)





Shipping And Returns
Our shipping charges are basically what it cost us to ship. International shipping rates via the USPS for this weight are much higher than you might expect. Please click HERE to view just how much these charges are, and you will see that our rates are just what it cost. We would charge less, if it cost us less.

Due to major delays in customs, we no longer ship to Italy.

To our International customers. We cannot misrepresent the price of the products being shipped to you. You are responsible for any and all tariffs, duties or import fees imposed by your country or customs.

Returned items must be in their original condition and fully resalable. Returns may incur a 20% restocking fee. Damages that occur during return transit will be liable to the buyer. Buyer is responsible for all tariffs, customs fees, VATs.









By popular request, here are a few documents that show just how all of these components tie together.





If you have any questions, please do not hesitate to ask, we are happy to help.


Thanks For Looking!

Coleman Air -- Empowering Innovation

Wind and Solar Controllers, Electronics, Hardware & Accessories perfect for the DIY'er.






 Empowering Innovation





Click here to download the quick start guide
Click here to download the full installation and instructional manual.
